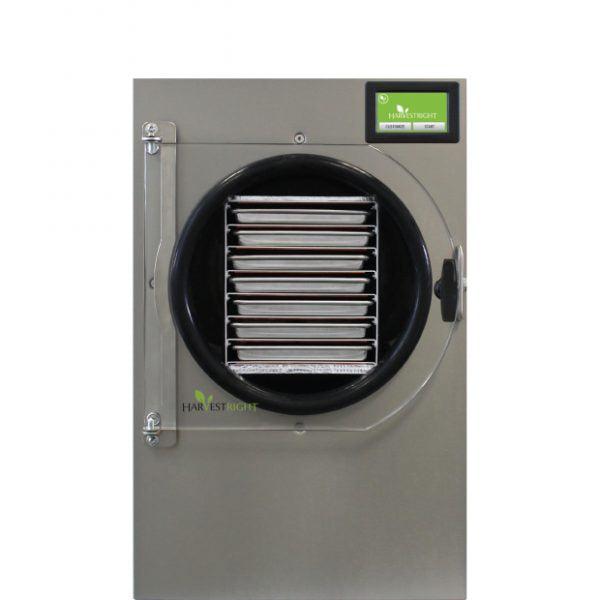

Harvest Right 7-Tray Pharmaceutical Freeze Dryer, Medium Size

Harvest Right Medium Pharmaceutical Freeze Dryer

Patented technology keeps the product fresh, and preserves the potency, color, shape, and nutrition of any organic material. Perfect for freeze-drying herbs, oils, medicines, remedies, pharmaceuticals, and compounds.

Features:

• The freeze dryer has built-in intelligence. It automatically and perfectly manages the freeze-drying process.
• Has lower set temperatures during dry cycles (50-60 degrees)
• Does not do the vacuum-freeze during Freeze cycle (which is different than the regular home freeze dryers)
• Pump stays on at the end of the batch and must be manually turned off. To prevent oil from ever being sucked into the drain valve.

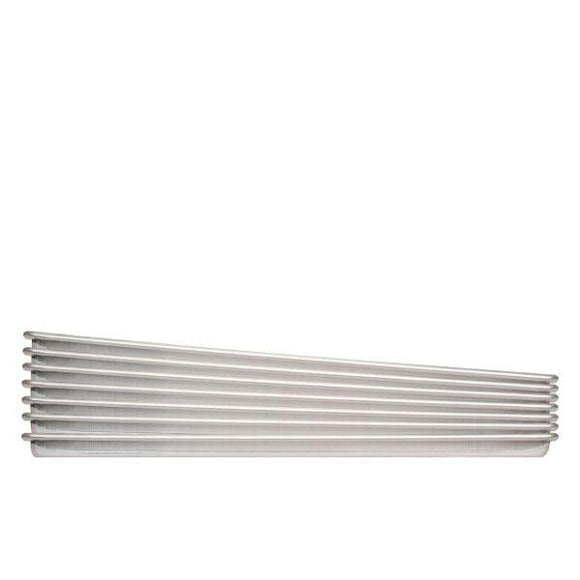

• The shelving units for these models have more shelves than the standard shelving units, to allow higher processing volume per batch. The medium unit has 7 shelves.
• 6.5 square feet of tray space — nearly twice the capacity of Harvest Right’s standard Medium freeze dryer
• 4 liters of ice capacity

Specifications:

• Power: 110 volt
• Dimensions: 20” W x 25” D x 30” H
• Shipping Weight: 212 lbs
• Shipping Dimensions: 26” W x 36” D x 45” H
• Perfect for a countertop, cart or table.
• One Year Warranty

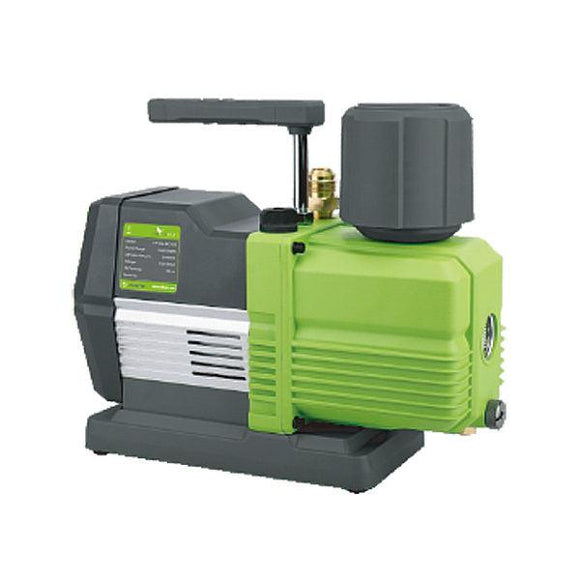

Vacuum Pump and Oil Filter

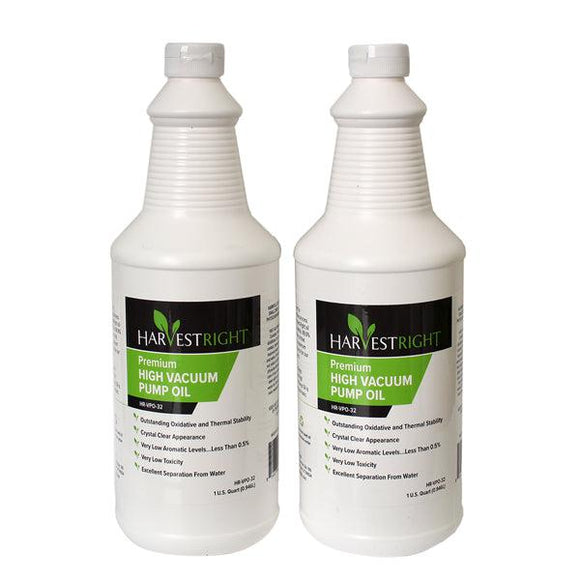

The freeze dryer itself requires little to no maintenance. However, all freeze dryers come with a high-quality vacuum pump, which requires some maintenance, mainly adding and draining oil. There are 3 cups of oil in a vacuum pump that need to be changed regularly to keep a freeze dryer running efficiently. This is a simple process and requires little effort.

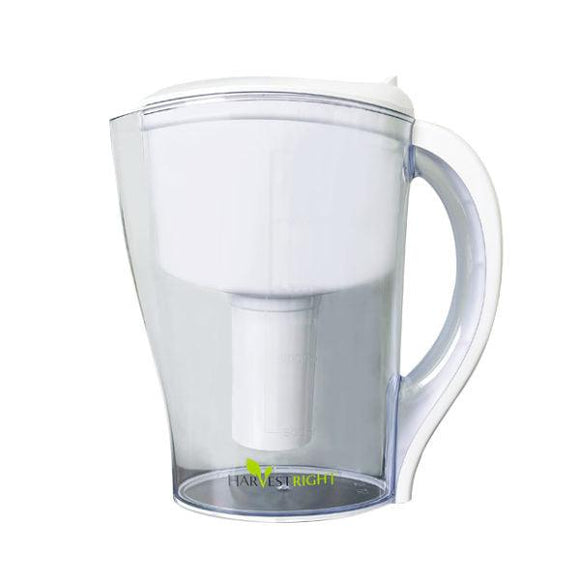

Each freeze dryer also includes a stand-alone oil filter. The filter cleans the oil and allows you to keep reusing your oil as if it were new. Using filtered oil in each batch is a great way to save money and be more eco-friendly, while also helping your vacuum pump perform as efficiently as possible.

SPECS

Each vacuum pump has been factory tested to guarantee 25 microns (25,400
Microns = 1 Inch of Hg) or better, and listed CFM performance.

Technical Specifications:

• CFM: 7.2
• Motor: ¾ HP, 1725 RPM
• Voltage: Standard 115V 60Hz
• Plug: US 110V
• Intake Port: ¾ JIC flare
• Intake Port: 21 oz (680 cc)
• Dimensions: 10½” H x 16” D x 5¾” W
• Weight: 35 lbs

Maintenance

Simply filter and replace oil. Takes one or two minutes.
